DIN Rail Mini Circuit Breaker

  • MCB WSB5L-40 (Phase+Neutral+Earth Leakage)
  • MCB WSB5L-40 (Phase+Neutral+Earth Leakage)
  • MCB WSB5L-40 (Phase+Neutral+Earth Leakage)
  • MCB WSB5L-40 (Phase+Neutral+Earth Leakage)
MCB WSB5L-40 (Phase+Neutral+Earth Leakage) MCB WSB5L-40 (Phase+Neutral+Earth Leakage) MCB WSB5L-40 (Phase+Neutral+Earth Leakage) MCB WSB5L-40 (Phase+Neutral+Earth Leakage)

MCB WSB5L-40 (Phase+Neutral+Earth Leakage)

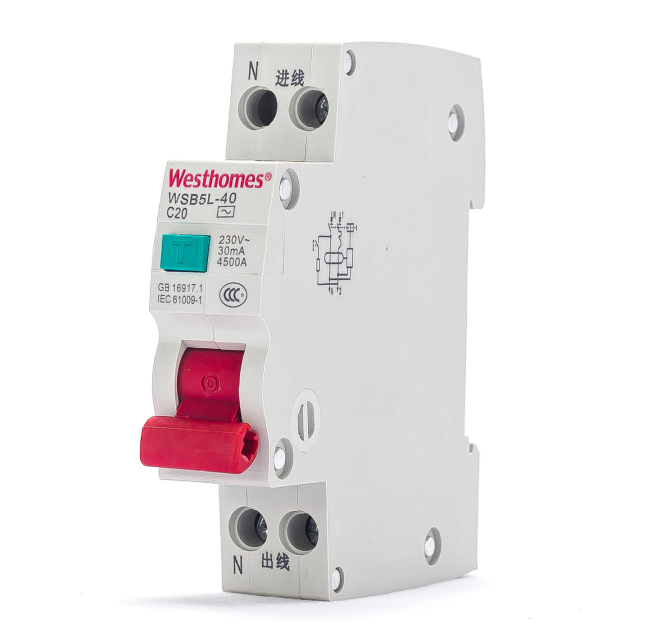

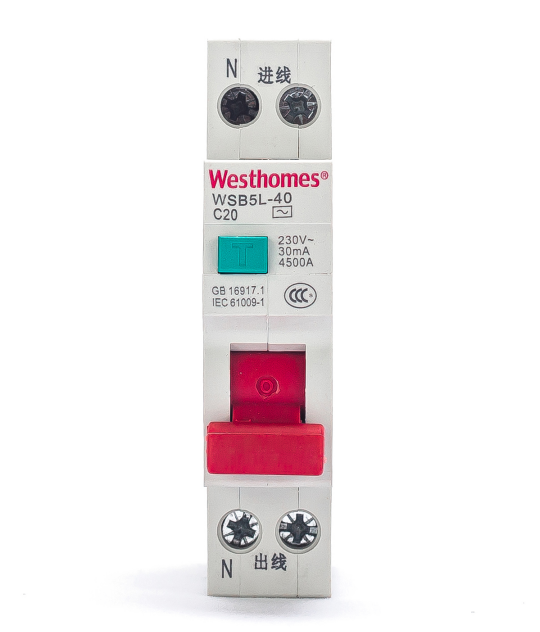

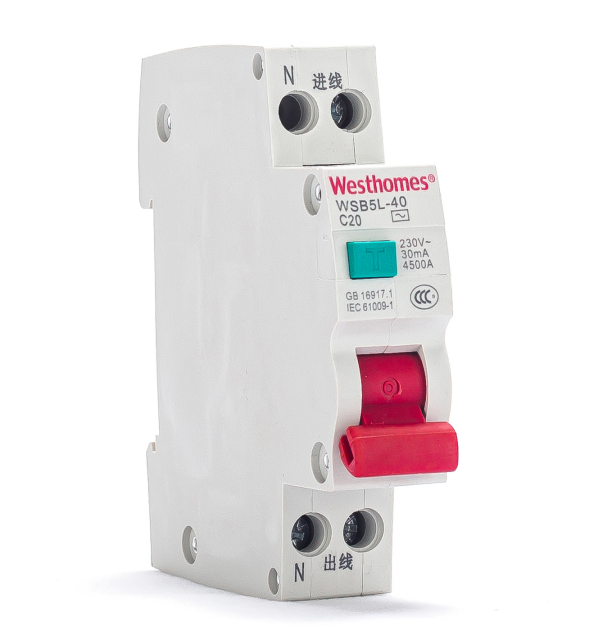

  • Product ID: Miniature Circuit Breaker WSB5L-40 PHASE+NEUTRAL+EARTH LEAKAGE
  • size: 18mm 1P+N 4.5kA 30mA
  • INQUIRY

Key Information

WSB5L-40

Pole: 1P+N

Voltage: AC230V

kA: 4.5kA

Amps: 6, 10, 16, 20, 25, 32,40

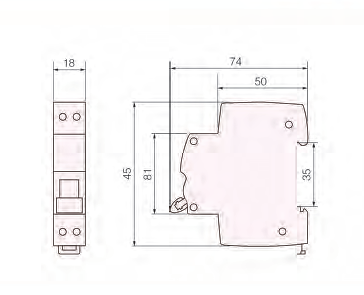

Width: 18mm

General

WSB5L-40 series (phase+neutral+earth leakage) circuit breaker is applied in single phase residential line o AC 50Hz or 60Hz, rated voltage 230V for earth leakage protection, as well as protection of overload and short circuit for civil electrical line. The product is small in volume, big in breaking capacity. It can stll make earth leakage protection even null and live lines cut meanwile, and live line connects reversely. It meets standards IEC/EN61009-1 and GB16917.1

Main technical parameters

Model Current rating (A)Rated voltage (V)Breaking capacityEarthing leakage action currentTripping featureWiring Width
WSB5L-406, 10, 16, 20, 25, 32, 40230V, 50Hz4500A30mA, class ACType C 5-10In tripping instantaneousWires 10mm2 and below18mm
  1. Phase line + neutral line + earth leakage

  2. The product meets standard IEC 61009 and GB 16917.1
