DIN Rail Switch Disconnector

  • Switch Disconnector WH1-125
  • Switch Disconnector WH1-125
  • Switch Disconnector WH1-125
  • Switch Disconnector WH1-125
  • Switch Disconnector WH1-125
  • Switch Disconnector WH1-125
  • Switch Disconnector WH1-125
Switch Disconnector WH1-125 Switch Disconnector WH1-125 Switch Disconnector WH1-125 Switch Disconnector WH1-125 Switch Disconnector WH1-125 Switch Disconnector WH1-125 Switch Disconnector WH1-125

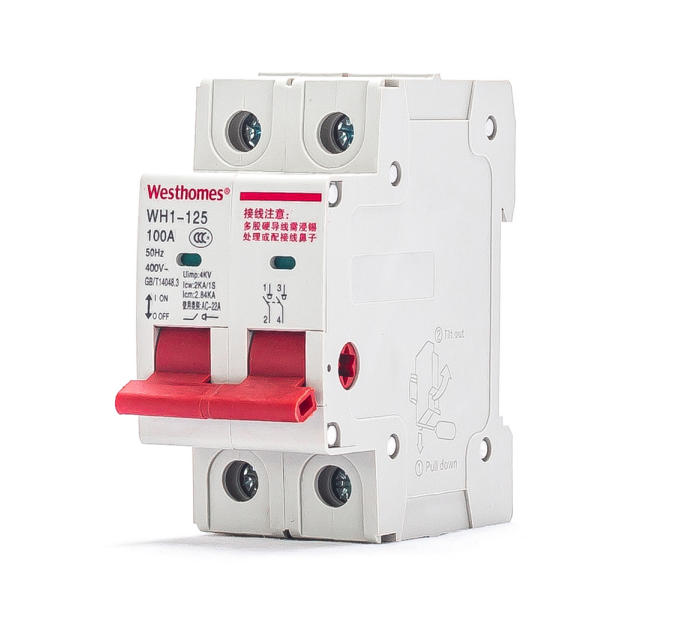

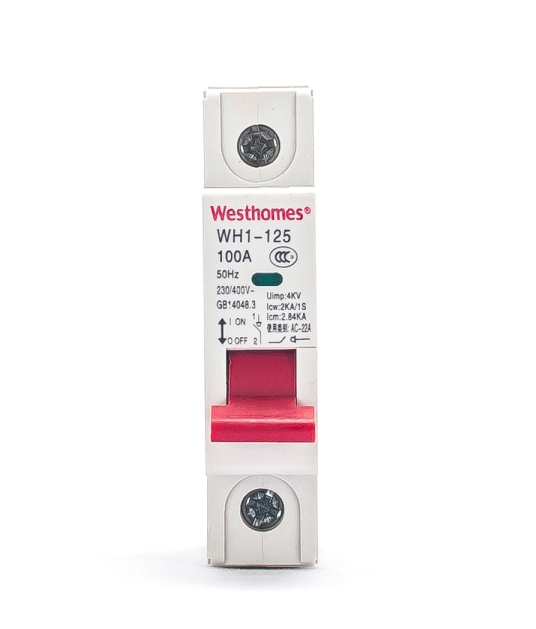

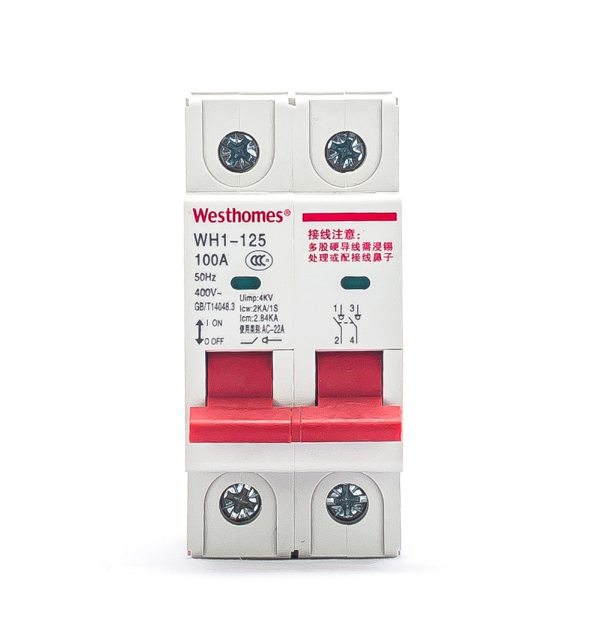

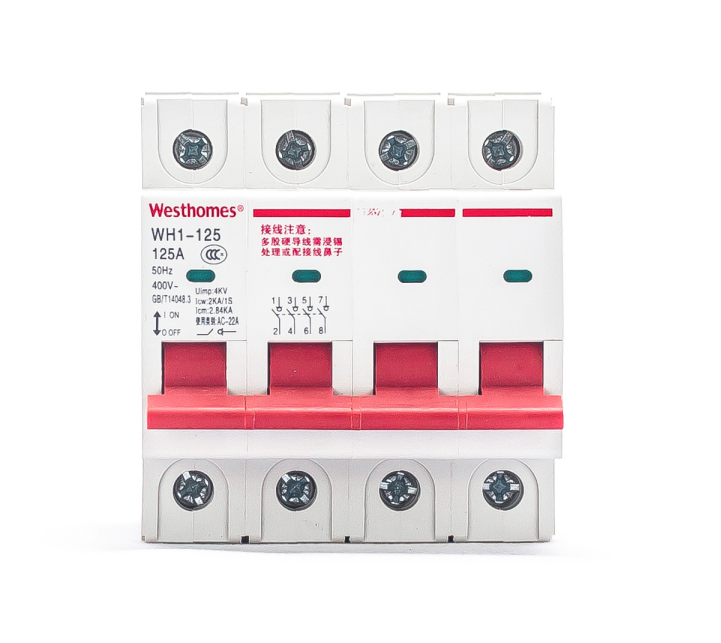

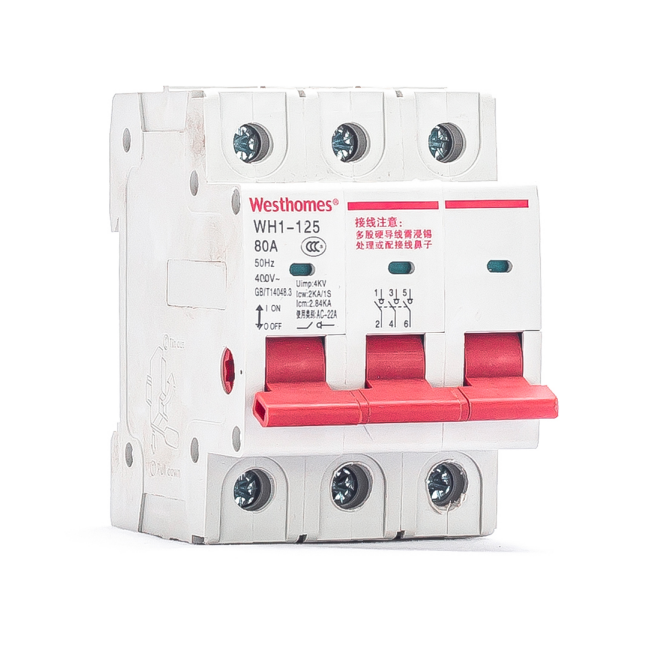

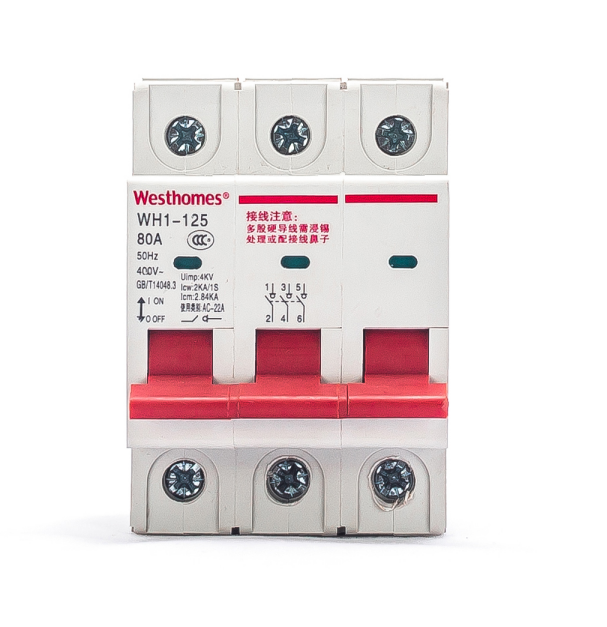

Switch Disconnector WH1-125

Key Information

WH1-125

Pole: 1P, 2P, 3P, 4P

Voltage: AC230V/400V

kA: Icm:2.84KA

Amps: 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A

General

WH1-125 series switch disconnector applies to lines of AC50/60Hz, rated voltage AC230V/400V, rated current 20A to 125A, mainly for disconnecting the power of thel ine, also for infrequency  switch for no-loading of line.

The switch disconnector is made up to three parts of insulated shell, operational mechanism and contact system, of which the insulated shell is made by injection moulding of high strength and flame retardant nylon, the contact is bridge double breakpoints, the operational mechanism is spring energy saving fast move structure.

The switch disconnector is fine and small in appearance with unique on-off indicator window. It is fast in breaking and reliable & flexible in action, easy to install and dismantle by using standard mounting rail. It makes any combination of single-pole, double-pole, three-pole and four-pole. It can be matched with mini circuit breaker, mini earth leakage circuit breaker, to apply at places of industrial, commercial, high-rise and civil building etc.

Main technical parameters

ModelWH1-125
Current rating20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A
Poles (p)1P, 2P, 3P, 4P
Rated voltage UeAC230V/400V (1P); 400V (2P-4P)
Rated short time withstand current Icw2kA
Rated short time connecting capacity Icm2.84kA
Hydrothermal resistanceCategory 2
Uilization catagoryAC-22A
Electrical life8000 times
Mechanical life20000 times
Pollution degreeLevel 2
Cabling capacity1~50mm2
Quality certificateCCC certificated
StandardIEC60947-3, GB14048.3
ModelWH1-125
Current rating20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A
Poles (p)1P, 2P, 3P, 4P
Rated voltage UeAC230V/400V (1P); AC400V (2P-4P)
Rated short time withstand current Icw2kA
Rated short time connecting capacity Icm2.84kA
Hydrothermal resistanceCategory 2
Uilization catagoryAC-22A
Electrical life8000 times
Mechanical life20000 times
Pollution degreeLevel 2
Cabling capacity1~50mm2
Quality certificateCCC certificated
StandardIEC60947-3, GB14048.3
